forklift bearings

Forklift bearings are a very important hardware component used in forklifts and play an irreplaceable role in the work of forklifts.
Forklift bearings have four characteristics:
Thicker outer ring
Non-separable design
The rolling elements are balls or rollers
With seals

Models

Mast Guides Bearings

Combination Rollers

NUKR Series

Mast Guides Bearings

Combination Rollers

NUKR Series

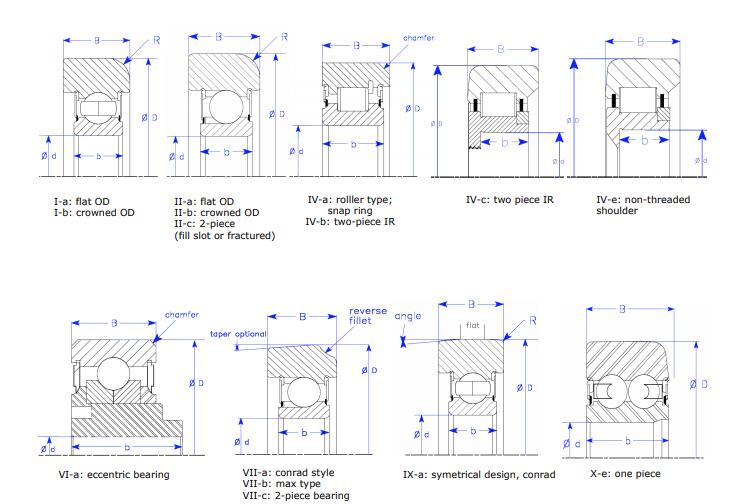

Part Number	Inner Diameter, d	Outer Diameter, D	Inner Ring Width, b	Outer Ring Width, B	Radius, R	Dynamic Capacity	Static Capacity	Weight
MG 205‑1E	12.800 mm	57.00 mm	26.9 mm	20.500 mm	1.000 mm	16,100 N	11,000 N	0.75 lb
MG 205‑2E	13.000 mm	52.00 mm	24 mm	18.000 mm	2.000 mm	16,100 N	11,000 N	0.60 lb
MG 305‑7E	17.000 mm	72.80 mm	33.6 mm	25.000 mm	1.500 mm	27,000 N	18,800 N	1.45 lb
MG 205 FF	25.000 mm	65.00 mm	15 mm	21.000 mm	6.000 mm	14,020 N	7,060 N	0.75 lb
MG 205 FFX	25.000 mm	67.00 mm	15 mm	26.000 mm	4.500 mm	14,020 N	7,060 N	0.85 lb
MG 305 DD‑5	25.000 mm	76.20 mm	17 mm	25.400 mm	8.380 mm	22,390 N	11,490 N	1.25 lb
MG 305 DDB	25.000 mm	76.20 mm	17 mm	25.400 mm	6.350 mm	22,390 N	11,490 N	1.25 lb
MG 305 DDE	25.000 mm	79.55 mm	17 mm	23.500 mm	6.000 mm	22,390 N	11,490 N	1.40 lb
MG 305 DDH	25.000 mm	72.00 mm	28 mm	28.000 mm	2.000 mm	61,240 N	65,950 N	1.45 lb
MG 305 DDTY	25.000 mm	62.00 mm	19.5 mm	18.000 mm	2.000 mm	36,400 N	36,700 N	0.70 lb
MG 305 DDX	25.000 mm	80.00 mm	17 mm	22.000 mm	2.500 mm	22,390 N	11,490 N	1.35 lb
MG 305 DDZ	25.000 mm	80.00 mm	15 mm	22.000 mm	2.500 mm	22,390 N	11,490 N	1.45 lb
MG 305 R‑1	25.000 mm	62.00 mm	34 mm	28.000 mm	2.000 mm	48,500 N	71,500 N	1.30 lb
MG 305 T‑5	25.000 mm	71.00 mm	17 mm	21.000 mm	1.500 mm	22,390 N	11,490 N	0.90 lb
MG 305 DD‑7	25.400 mm	74.60 mm	17 mm	25.400 mm	8.380 mm	22,390 N	11,490 N	1.15 lb
MG 305 DDR	25.400 mm	63.50 mm	31.75 mm	32.250 mm	2.000 mm	61,240 N	65,950 N	1.15 lb
MG 306 RB‑3	25.500 mm	77.70 mm	25.5 mm	30.000 mm	4.000 mm	61,700 N	81,400 N	2.75 lb
MG 28mm‑1	28.000 mm	77.20 mm	14.5 mm	27.000 mm	5.000 mm	54,970 N	62,890 N	1.70 lb
MG 28mm‑J2	28.000 mm	79.50 mm	21 mm	24.000 mm	5.000 mm	27,400 N	14,000 N	1.35 lb
MG 28mm‑J3	28.000 mm	80.00 mm	21 mm	24.000 mm	5.000 mm	27,400 N	14,000 N	1.35 lb
MG 28mm‑J4	28.000 mm	80.50 mm	21 mm	24.000 mm	5.000 mm	27,400 N	14,000 N	1.35 lb
MG 28mm‑J5	28.000 mm	81.00 mm	21 mm	24.000 mm	5.000 mm	27,400 N	14,000 N	1.35 lb
MG 28mm‑J6	28.000 mm	81.50 mm	21 mm	24.000 mm	5.000 mm	27,400 N	14,000 N	1.35 lb
MG 206 FFA	30.000 mm	81.28 mm	19.58 mm	25.400 mm	chamfer	19,450 N	11,260 N	1.40 lb
MG 206 FFAB	30.000 mm	82.11 mm	19.58 mm	25.400 mm	chamfer	19,460 N	11,310 N	1.45 lb
MG 206 FFE	30.000 mm	76.20 mm	16 mm	28.500 mm	3.000 mm	27,360 N	18,860 N	1.25 lb
MG 206 FFH	30.000 mm	79.50 mm	16.59 mm	28.575 mm	6.750 mm	19,460 N	11,310 N	1.50 lb
MG 206 FFM	30.000 mm	81.28 mm	19.58 mm	25.400 mm	chamfer	23,100 N	18,800 N	1.40 lb
MG 206 FFP	30.000 mm	88.00 mm	16.59 mm	29.000 mm	6.000 mm	19,460 N	11,310 N	2.15 lb
MG 206 FFPA	30.000 mm	88.50 mm	16.5 mm	29.000 mm	5.500 mm	27,360 N	18,860 N	2.20 lb
MG 206 FFPB	30.000 mm	89.00 mm	16.5 mm	29.000 mm	5.500 mm	27,360 N	18,860 N	2.20 lb
MG 206 FFU	30.000 mm	81.00 mm	16.59 mm	29.000 mm	6.000 mm	19,460 N	11,310 N	1.70 lb
MG 206 FFW	30.000 mm	86.80 mm	16.59 mm	28.500 mm	4.800 mm	19,460 N	11,310 N	2.00 lb
MG 206 FFX	30.000 mm	81.80 mm	16 mm	27.000 mm	3.000 mm	27,360 N	18,860 N	1.55 lb
MG 206 FFZ	30.000 mm	79.63 mm	16.58 mm	28.580 mm	4.400 mm	19,460 N	11,310 N	1.60 lb
MG 206 FFZA	30.000 mm	80.49 mm	16.58 mm	28.500 mm	4.826 mm	27,360 N	18,860 N	1.65 lb
MG 206 FFZB	30.000 mm	81.25 mm	16.58 mm	28.500 mm	4.826 mm	27,360 N	18,860 N	1.70 lb
MG 306 D‑3	30.000 mm	88.90 mm	19 mm	25.400 mm	9.525 mm	26,600 N	14,900 N	1.80 lb
MG 306 DDB	30.000 mm	82.55 mm	19 mm	26.970 mm	9.000 mm	26,600 N	14,900 N	1.45 lb
MG 306 DDCR	30.000 mm	69.00 mm	25.4 mm	25.400 mm	1.500 mm	62,700 N	81,536 N	2.20 lb
MG 306 DDL‑1	30.000 mm	75.20 mm	16 mm	24.000 mm	6.000 mm	57,100 N	67,100 N	1.30 lb
MG 306 DDL‑11	30.000 mm	75.00 mm	10 mm	24.000 mm	4.000 mm	57,100 N	67,250 N	3.85 lb
MG 306 DDL‑12	30.000 mm	76.00 mm	10 mm	24.000 mm	4.000 mm	57,100 N	67,250 N	3.85 lb
MG 306 DDL‑2	30.000 mm	75.70 mm	16 mm	24.000 mm	6.000 mm	57,100 N	67,100 N	1.30 lb
MG 306 DDL‑3	30.000 mm	75.90 mm	16 mm	24.000 mm	6.000 mm	57,100 N	67,100 N	1.30 lb
MG 306 DDL‑4	30.000 mm	76.20 mm	16 mm	24.000 mm	6.000 mm	57,100 N	67,100 N	1.30 lb
MG 306 DDL‑6	30.000 mm	75.30 mm	23.5 mm	24.000 mm	6.000 mm	21,000 N	16,000 N	1.25 lb
MG 306 DDL‑7	30.000 mm	75.60 mm	23.5 mm	24.000 mm	6.000 mm	21,000 N	16,000 N	1.25 lb
MG 306 DDL‑8	30.000 mm	75.90 mm	23.5 mm	24.000 mm	6.000 mm	21,000 N	16,000 N	1.25 lb
MG 306 FFT	30.000 mm	91.60 mm	19 mm	25.000 mm	5.000 mm	27,000 N	15,190 N	1.95 lb
MG 306 FFT‑2	30.000 mm	92.00 mm	19 mm	24.000 mm	5.000 mm	27,000 N	15,190 N	2.00 lb
MG 306 TA‑1	30.000 mm	77.60 mm	19 mm	28.000 mm	4.500 mm	28,250 N	15,980 N	1.70 lb
MG 5206 AC‑1	30.000 mm	76.10 mm	23.8 mm	28.500 mm	2.000 mm	28,100 N	20,000 N	3.95 lb
MG 5206 AC‑3	30.000 mm	75.70 mm	23.8 mm	28.500 mm	9.000 mm	n/a	n/a	3.30 lb
MG 33mm‑1	33.000 mm	88.60 mm	15 mm	29.000 mm	7.000 mm	65,000 N	83,000 N	2.35 lb
MG 33mm‑2	33.000 mm	75.30 mm	20.5 mm	24.000 mm	6.000 mm	19,500 N	11,680 N	2.10 lb
MG 307/34 DDL‑17	34.000 mm	105.00 mm	9 mm	34.000 mm	6.000 mm	95,640 N	115,300 N	3.85 lb
MG 307/34 DDL‑18	34.000 mm	105.70 mm	9 mm	34.000 mm	6.000 mm	95,640 N	115,300 N	3.85 lb

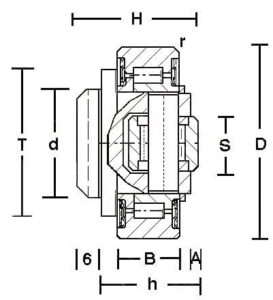

Part Number	D	M	T	W	X	B	A	S	R
MG 4.053	52.5 mm	40 mm	30 mm	33.0 mm	27.0 mm	17 mm	5.0 mm	15 mm	2 mm
MG 4.054	62.5 mm	42 mm	30 mm	37.5 mm	30.5 mm	20 mm	2.5 mm	20 mm	3 mm
MG 6.054	64.8 mm	42 mm	30 mm	37.5 mm	30.5 mm	20 mm	2.5 mm	20 mm	3 mm
MG 4.055	70.1 mm	48 mm	35 mm	44.0 mm	36.0 mm	23 mm	2.5 mm	22 mm	4 mm
MG 6.055	73.8 mm	48 mm	35 mm	44.0 mm	36.0 mm	23 mm	2.5 mm	22 mm	4 mm
MG 4.056	77.7 mm	54 mm	40 mm	48.0 mm	36.5 mm	23 mm	3.0 mm	26 mm	4 mm
MG 4.057	77.7 mm	53 mm	40 mm	40.0 mm	29.0 mm	23 mm	3.0 mm	26 mm	4 mm
MG 6.056	81.8 mm	54 mm	40 mm	48.0 mm	36.5 mm	23 mm	3.0 mm	26 mm	4 mm
MG 4.058	88.4 mm	59 mm	45 mm	57.0 mm	44.0 mm	30 mm	3.5 mm	26 mm	3 mm
MG 6.058	92.8 mm	59 mm	45 mm	57.0 mm	44.0 mm	30 mm	3.5 mm	26 mm	3 mm
MG 4.059	101.2 mm	67 mm	50 mm	46.0 mm	33.0 mm	28 mm	3.0 mm	30 mm	3 mm
MG 4.060	107.7 mm	71 mm	55 mm	53.0 mm	39.0 mm	31 mm	3.0 mm	34 mm	5 mm
MG 4.061	107.7 mm	71 mm	60 mm	69.0 mm	55.0 mm	31 mm	4.0 mm	34 mm	5 mm
MG 6.061	111.8 mm	71 mm	60 mm	69.0 mm	55.0 mm	31 mm	4.0 mm	34 mm	5 mm
MG 4.062	123.0 mm	80 mm	60 mm	72.3 mm	56.0 mm	37 mm	5.0 mm	40 mm	5 mm
MG 6.062	127.8 mm	80 mm	60 mm	72.3 mm	56.0 mm	37 mm	5.0 mm	40 mm	5 mm
MG 4.063	149.0 mm	103 mm	60 mm	77.5 mm	58.5 mm	43 mm	5.5 mm	50 mm	3 mm
MG 6.063	153.8 mm	103 mm	60 mm	77.5 mm	58.5 mm	43 mm	5.5 mm	50 mm	3 mm

Part Number	Inner Diameter, d	Outer Diameter, D	Inner Ring Width, b	Outer Ring Width, B	Dynamic Capacity, Cr.	Static Capacity, Cor.	Weight
NUTR 15	15 mm	35 mm	19 mm	18 mm	23,000 N	27,000 N	0.218 lb
NUTR 1542	15 mm	42 mm	19 mm	18 mm	23,000 N	27,000 N	0.348 lb
NUTR 17	17 mm	40 mm	21 mm	20 mm	24,800 N	31,000 N	0.324 lb
NUTR 1747	17 mm	47 mm	21 mm	20 mm	24,800 N	31,000 N	0.485 lb
NUTR 20	20 mm	47 mm	25 mm	24 mm	39,000 N	50,000 N	0.540 lb
NUTR 2052	20 mm	52 mm	25 mm	24 mm	39,000 N	50,000 N	0.708 lb
NUTR 25	25 mm	52 mm	25 mm	24 mm	43,500 N	60,000 N	0.620 lb
NUTR 2562	25 mm	62 mm	25 mm	24 mm	43,500 N	60,000 N	0.992 lb
NUTR 30	30 mm	62 mm	29 mm	28 mm	59,000 N	79,000 N	1.025 lb
NUTR 3072	30 mm	72 mm	29 mm	28 mm	59,000 N	79,000 N	1.537 lb
NUTR 35	35 mm	72 mm	29 mm	28 mm	65,000 N	93,000 N	1.389 lb
NUTR 3580	35 mm	80 mm	29 mm	28 mm	65,000 N	93,000 N	1.843 lb
NUTR 40	40 mm	80 mm	32 mm	30 mm	90,000 N	134,000 N	1.799 lb
NUTR 4090	40 mm	90 mm	32 mm	30 mm	90,000 N	134,000 N	2.489 lb
NUTR 45	45 mm	85 mm	32 mm	30 mm	95,000 N	147,000 N	1.947 lb
NUTR 45100	45 mm	100 mm	32 mm	30 mm	95,000 N	147,000 N	3.078 lb
NUTR 50	50 mm	90 mm	32 mm	30 mm	100,000 N	161,000 N	2.095 lb
NUTR 50110	50 mm	110 mm	32 mm	30 mm	100,000 N	161,000 N	3.726 lb
NUTR 50110‑A	50 mm	110 mm	32 mm	40 mm	100,000 N	161,000 N	4.605 lb
